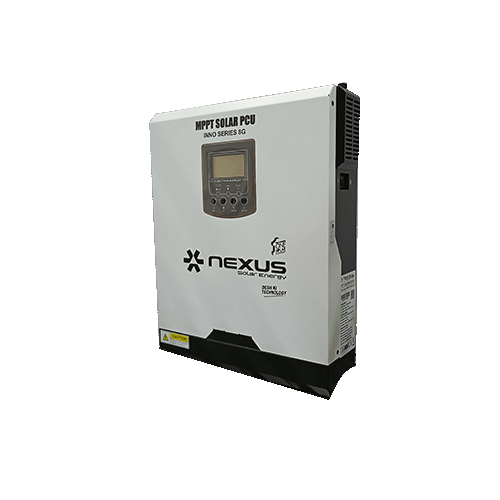

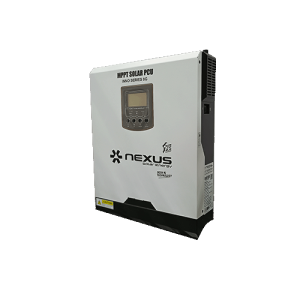

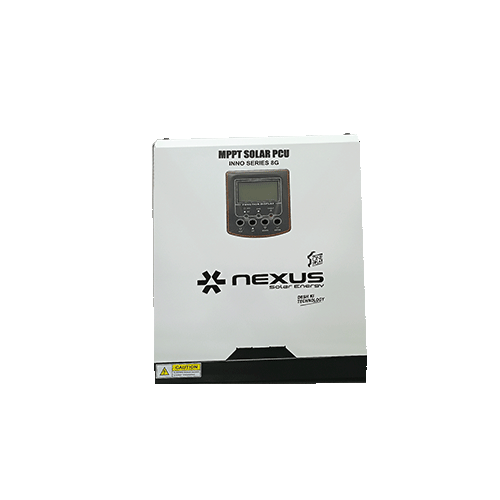

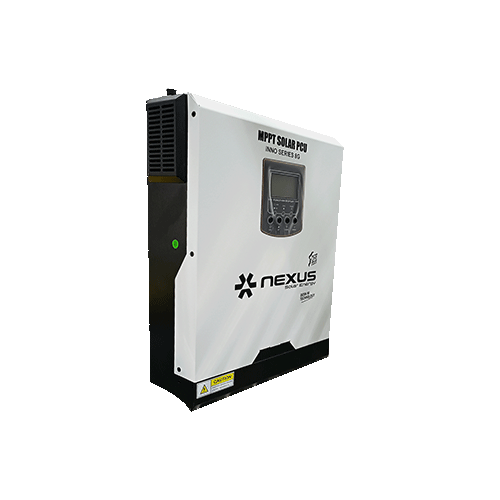

INNO 8G 8kW 48V OFF Grid Solar Inverter

177,500.00

Nexus Solar Energy INNO 8G 8kVA-48V Solar Inverter is designed to offer more customized options to customers along with robustness. It comes with wide MPPT range and has built-in dual MPPT controllers to offer 8kW PV capacity. This inverter comes with load sharing option between solar and grid and you can also use this without batteries. It has kwh meter inbuilt.

Description

NNO 8G 8kW 48V Off-Grid Solar Inverter, a cutting-edge solution for harnessing solar energy and providing reliable power in off-grid applications. This state-of-the-art inverter is designed to meet the demands of off-grid systems, ensuring seamless and efficient energy conversion for a variety of remote and standalone power setups.

    1. High Power Output: With an impressive 8kW capacity, the INNO 8G delivers ample power to support diverse electrical appliances and devices in off-grid environments, making it ideal for homes, cabins, and remote installations..
    2. Advanced 48V Technology: The 48V input ensures optimized energy conversion, allowing for efficient utilization of solar power and enhancing the overall performance of the system.
    3. Off-Grid Functionality: The INNO 8G is specifically designed for off-grid applications, providing a reliable and independent power source. It’s the perfect solution for locations without access to the traditional power grid.
    4. Pure Sine Wave Output: This inverter generates a pure sine wave output, guaranteeing a clean and stable power supply. This feature is crucial for sensitive electronic equipment, preventing potential damage and ensuring a consistent flow of energy.
    5. Multiple Protection Mechanisms: This inverter generates a pure sine wave output, guaranteeing a clean and stable power supply. This feature is crucial for sensitive electronic equipment, preventing potential damage and ensuring a consistent flow of energy.
    6. User-Friendly Interface: The inverter boasts an intuitive and user-friendly interface, making it easy to monitor and control the system. The LCD display provides real-time information on energy production, battery status, and overall system performance.

Features

      • Pure Sine Wave solar inverter with up-to 93% peak efficiency
      • Setting Timer available for load priority and battery charging
      • Selectable maximum discharge current based on battery bank
      • Built in Wi-Fi monitoring via mobile app
      • Communication port for BMS – RS485
      • LED bar with RGB Lights to indicate status
      • Compatible with Lead Acid, Lithium-Ion and LiFePO4 Batteries
      • Can be used without batteries
      • Connect up-to 6 inverters in parallel in single phase & three phase

    INNO 8G 8kW 48V OFF Grid Solar Inverter

    Model INNO 8G 8KW
    RATED POWER 8000VA/8000W
    Voltage 230 VAC
    Selectable Voltage Range 170-280 VAC (For UPS Mode) at 100% Load; 90-280 VAC (For Appliance Mode) at 50% Load
    Frequency Range 50 Hz/60 Hz (Auto sensing)
    AC Voltage Regulation (Batt. Mode) 230 VAC ± 5%
    Surge Capacity 15000 VA for 5 secs
    Efficiency (Peak) 93%
    Transfer Time 15 ms (For UPS Mode); 20 ms (For Appliance Mode)
    Waveform Pure Sine Wave
    Battery Voltage Battery Voltage48 VDC
    Floating Charge Voltage 54 VDC
    Maximum Solar Charging Current 120A
    Maximum PV Array Power 8000W (2 x 4000W)
    Solar Charger Type MPPT
    MPPT Range 90 ~ 450VDC
    Maximum PV Array Open Circuit Voltage 500 VDC
    Maximum Input Charge Current 18A*2 (Max 30A)
    Dimension, D x W x H (mm) 147.4 x 432.5 x 553.6 mm (D x W x H)
    Net Weight (kgs) 18.4
    Humidity 5% to 95% Relative Humidity(Non-condensing)
    Operating Temperature -10°C – 50°C
    Storage Temperature -15°C – 60°C

* Download Data Specification : Click Now
* Product specifications are subject to change without further notice

Additional information

Weight 18.4 kg
Dimensions 14 × 43 × 55 cm
