Description
Harnessing the power of the sun, the Nexus Solar Energy 3Kw-24V INNO 8G features a robust 8th generation solar inverter that maximizes energy conversion, ensuring optimal performance and reliability. With a power output of 3 kilowatts and a 24-volt configuration, this system is engineered to meet the energy demands of modern households and businesses.
The sleek and compact design of the Nexus Solar Energy 3Kw-24V INNO 8G makes it a seamless addition to any environment, seamlessly integrating into your existing infrastructure. Its intelligent engineering allows for easy installation and maintenance, providing a hassle-free experience for users looking to embrace clean, renewable energy.
- Direct Power from Solar:- Nexus Solar Energy allows you to choose on how to power your loads: Either share loads between solar & utility or share loads between solar & battery. Intelligent system allows you to power load directly from solar power during the day time keeping grid and/or battery power only for back-up.
- Battery Usage Option & Battery Compatibility:- Nexus Solar Energy MPPT is designed to offer great flexibility. If you face power cuts then connect batteries for back up today and in future when you do not face power cuts, you can use the system without batteries. It is compatible with Lithium Ion, LiFePo4 and Lead acid batteries.
- Wide PV Input & MPPT Range:- Nexus Solar Energy Series comes with high PV input capacity. Wide MPPT rangeof the built-in solar charge controller offers more flexibility to the users to use any size of solar panels and helps reducing installation costs.
Features
-
-
- Power-factor 1
- Inbuilt WiFi Monitoring
- Pure sine wave inverter with 93% peak efficiency
- Works with or without batteries
- Built-in wide range single MPPT solar charge controller
- Light weight with slim design
- Double surge power capacity
- Auto restart function and cold start functions
-

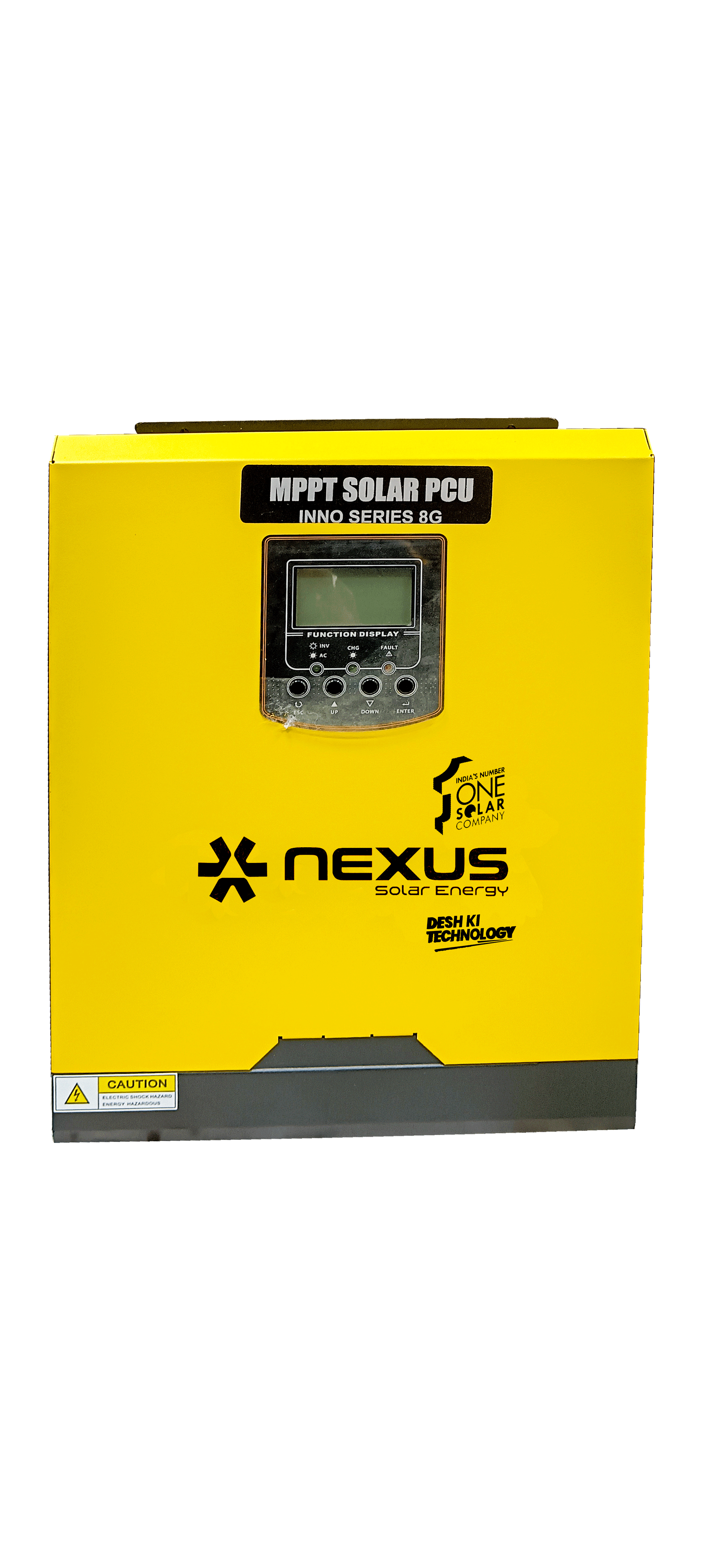

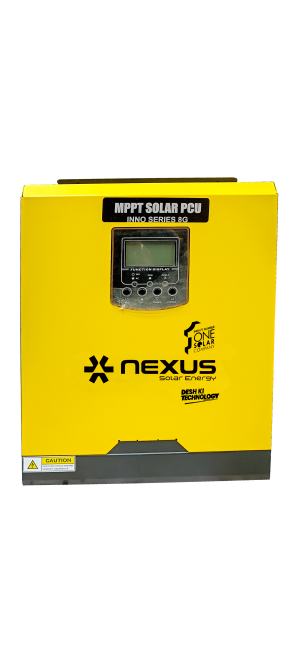

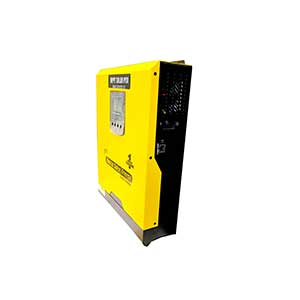

Nexus Inno 8G 3kW-24V OFF Grid INNO 8G Solar Inverter (Wi-fi)
| Model | INNO 8G 3KW |
| Rated Power | 3000VA/3000KW |
| Parallel Capability | NO |
| Voltage | 230 VAC |
| Selectable Voltage Range | 170-280 VAC (For UPS Mode); 90-280 VAC (For Appliance Mode) |
| Frequency Range | 50 Hz/60 Hz (Auto sensing) |
| AC Voltage Regulation (Batt. Mode) | 230 VAC ± 5% |
| Surge Capacity ( for 5 seconds ) | 6000VA |
| Efficiency (Peak) | 93% |
| Transfer Time | 10 ms (For UPS Mode); 20 ms (For Appliance Mode) |
| Waveform | Pure Sine Wave |
| Battery Voltage | 24 VDC |
| Floating Charge Voltage | 27 VDC |
| Overcharge Protection | 33VDC |
| Battery Equalization Feature | Yes |
| Maximum AC Charge Current | 80 A |
| Maximum PV Wattage Capacity | 3000 W |
| MPPT Range @ Operating Voltage | 60 ~ 400VDC |
| Nominal PV Voltage | 240 VDC |
| Maximum PV Array Open Circuit Voltage | 450 VDC |
| Communication Ports | RS232, RS485(For BMS only) |
| Monitoring Software | In-Built WiFi Monitoring Included |
| Dimension, D x W x H (mm) | 110 x 288 x 390 |
| Net Weight (kgs) | 7.2 |
| Dust Filter | Included |
| Dust Filter | Included |
| Humidity | 5% to 95% Relative Humidity(Non-condensing) |
| Operating Temperature | -10°C-55°C |
| Storage Temperature | -15°C-60°C |
- Download Data Specification :- Click now
- Product specifications are subject to change without further notice.
