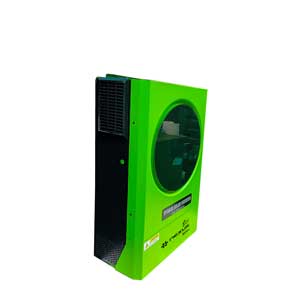

INNO 8G 6kW-48V OFF- Grid Solar Inverter – Nexus Solar Energy

INNO 8G 6kW-48V OFF- Grid Solar Inverter

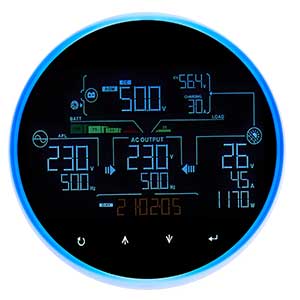

Nexus Solar Energy Turbo MPPT 6kW-48V Solar Hybrid Inverter is a new generation, future ready inverter with a creative design and a big 4.3-inch LCD display with RGB LED ring and touch buttons. It comes with dual output feature.Now connect emergency loads on one output and non-emergency loads on second output and control how you want to use battery backup for non-emergency loads. The second output can be intelligently controlled by inverter brain using multiple parameters.


Nexus Solar Energy Turbo can be used as a Hybrid, On-Grid and Off-Grid Solar Inverter. It comes with Grid-Export feature. This robust solar inverter offers 40+ customizable settings, load sharing option between solar & grid or solar & battery and supports variety of batteries including lead acid,lithium ion & LiFePO4 batteries. This model also comes with wide MPPT range with up to 6.5kW PV output and comes with inbuilt solar generation kwh meter.

Nexus Solar Energy Turbo comes with Dual Output feature, inbuilt Wi-Fi monitoring and can be expanded all the way up to 50kw solar system by connecting together up to 9 inverters in single phase or three phase setup. Now connect emergency loads on one output and non-emergency loads on second output and control how you want to use battery backup for non-emergency loads.


  1. Built-in MPPT Charge Controller: Integrated Maximum Power Point Tracking (MPPT) charge controller for optimizing the solar panel’s output and increasing overall system efficiency.
  2. Multiple Protection Mechanisms:Overload protection, short circuit protection, over/under-voltage protection, over-temperature protection, and other safety features to safeguard the inverter and connected devices.
  3. LCD Display/Control Panel: User-friendly LCD display or control panel for monitoring real-time system status, input/output voltages, battery levels, and other relevant information.
  4. Battery Compatibility: Designed to work with a variety of battery types, such as lead-acid, lithium-ion, or gel batteries, providing flexibility in system configuration.
  5. Fan Cooling System: Built-in cooling fans to regulate temperature and ensure optimal performance during operation.



    • Pure Sine Wave solar inverter with up-to 93% peak efficiency
    • Dual Output
    • Inbuilt kWH Meter and Grid Feed-in/Export option
    • Selectable timer for grid charging
    • Customizable supply priority and customer adjustable charging current and voltage
    • Communication port for BMS – RS485
    • Compatible with Lead Acid, Lithium-Ion and LiFePO4 Batteries
    • Can be used without batteries
    • Connect up-to 9 inverters in parallel in single phase & three phase

INNO 8G 6kW-48V OFF- Grid Solar Inverter

Model INNO 8G 6KW
Rated Power 6000 VA / 6000 W
Parallel Capability Yes, up to 9 units
Voltage 230 VAC
Selectable Voltage Range 170-280 VAC (For UPS Mode) at 100% Load; 90-280 VAC (For Appliance Mode)
Frequency Range 50 Hz/60 Hz (Auto sensing)
AC Voltage Regulation (Batt. Mode) 230 VAC ± 5%
Dual Output Yes
Surge Capacity 12000 VA for 5 secs
Efficiency (Peak) 93%
Transfer Time 10 ms (For Personal Computers); 20 ms (For Appliances)
Waveform Pure Sine Wave
No Load Power Consumption <50 W
Battery Voltage 48 VDC
Floating Charge Voltage 54 VDC
Overcharge Protection 66VDC
Maximum Solar Charging Current 120A
Maximum AC Charging Current 120A
Maximum PV Array Power 6500W
Solar Charger Type MPPT
MPPT Range 120 ~ 430VDC
Maximum PV Array Open Circuit Voltage 500 VDC
Maximum PV Input Current 27 A
Dimension, D x W x H (mm) 140 x 295 x 468
Net Weight (kgs) 12
Communication Interface RS232/Dry-Contact/WiFi
Humidity 5% to 95% Relative Humidity(Non-condensing)
Operating Temperature -10°C – 50°C
Storage Temperature -15°C – 60°C

* Download Data Specification :
*Product specifications are subject to change without further notice

Additional information

Weight 12 kg
Dimensions 14 × 29 × 46 cm
