160Ah 12.8V Lithium Solar Battery – Nexus Solar Energy

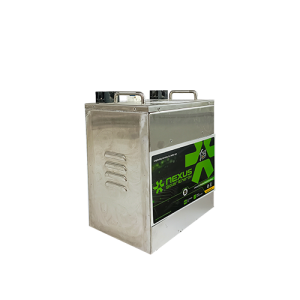

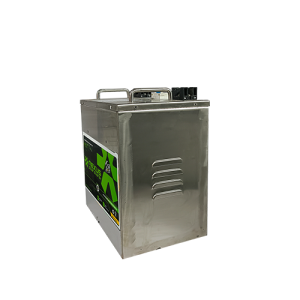

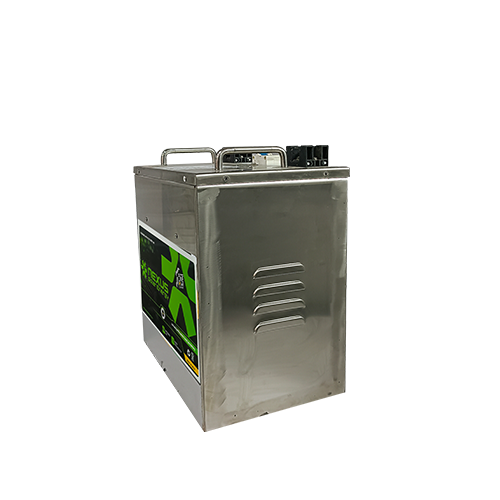

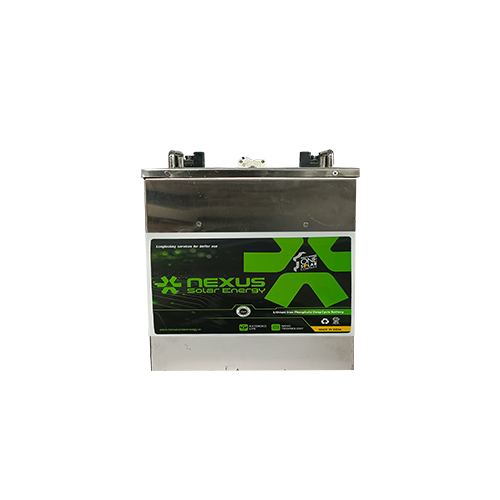

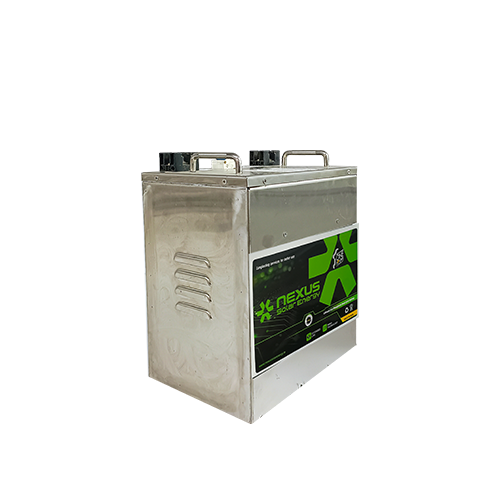

160Ah 12.8V Lithium Solar Battery


The 160Ah 12.8V Lithium Solar Battery is a type of rechargeable battery specifically designed for solar energy storage applications.


The 160Ah 12.8V Lithium Solar Battery is a robust and efficient energy storage solution designed specifically for solar power systems. With a capacity of 160 ampere-hours (Ah), this battery can store a significant amount of energy generated from solar panels during daylight hours, allowing for reliable power supply even when sunlight is unavailable.

key Features:

High Energy Density: Lithium-ion technology provides a high energy density, allowing for more energy storage in a compact and lightweight package compared to traditional lead-acid batteries.
Long Cycle Life: Lithium batteries typically have a longer cycle life compared to lead-acid batteries, meaning they can withstand more charge-discharge cycles without significant degradation in performance.
Fast Charging: Lithium batteries can be charged quickly, making them well-suited for solar applications where intermittent charging may occur throughout the day.
Deep Discharge Capability: This battery can be safely discharged to a greater depth without damaging its lifespan, maximizing the available energy storage capacity.
Built-in Battery Management System (BMS): The integrated BMS ensures safe operation by monitoring voltage, temperature, and current, protecting the battery from overcharging, over-discharging, and overheating.
Environmentally Friendly: Lithium batteries are more environmentally friendly than lead-acid batteries due to their lower self-discharge rate, longer lifespan, and recyclability.

160Ah 12.8V Lithium Solar Battery

Description Particulars
Brand Nexus Solar Energy
Rated Voltage 12.8
Rated Capacity 160Ah(C5,0.2C to 40.5V @25’C
Discharge Current(Max.) 25A
Discharge End Voltage 10.8V
Charge Current(Recomm.) 20A
Charge Current(Max.)) 25A
Charge Voltage 14.2
Dimension(WxDxH)mm 300x210x340
Typical Weight 20.0Kg
Terminal Size M8(Screw Size)
Breaker Standard
Maintenance Interface Standard
Temperature Range Discharge(-20 to 50’C), Charge(0 to +60’C), Storage(0 to 40’C)
Temperature Recommendation Discharge(+15 to +35’C), Charge(+15 to +35’C), Storage(+15 to +35’C)
Humidity 5 to 95%
  • Download Data Specification : Click Now
  • Product specifications are subject to change without further notice

Additional information

Weight 20 kg
Dimensions 30 × 21 × 34 cm
