Description

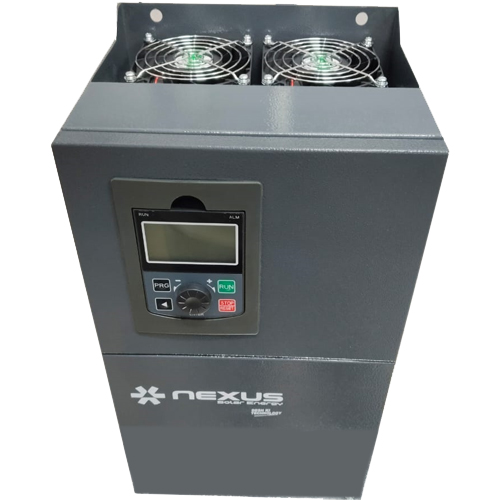

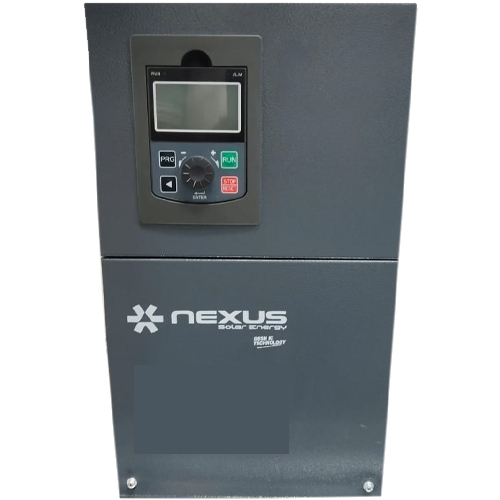

The MPPT Solar Pump Inverter 22kW, manufactured by Nexus Solar Energy Pvt. Ltd., is a high-performance solar controller designed for 3-phase 380V AC pump systems operating in large-scale agricultural, commercial, or rural water supply projects.
This heavy-duty inverter works with both solar PV input (DC 350–800V) and AC grid input (380–480V), ensuring water availability even during cloudy weather or critical timings. Its advanced MPPT (Maximum Power Point Tracking) system continuously optimizes solar panel output, ensuring >99.7% energy conversion efficiency throughout the day.
It comes loaded with smart features such as PQ curve support, auto start/stop, dry-run protection, overload & undervoltage cut-off, and auto recovery. Its rugged design is suitable for harsh environments, and its intelligent logic ensures smooth pump operation, minimum maintenance, and maximum uptime.
Whether you’re irrigating a multi-acre farm or running a rural water tank refill system, this 22kW inverter is engineered to handle high-flow, high-head applications with ease.
🔧 Technical Specifications:
| Parameter | Value |
|---|---|
| Brand | Nexus Solar Energy Pvt. Ltd. |
| Input Voltage (DC) | 350–800V |
| Input Voltage (AC) | 380–480V |
| Output Voltage | 3-Phase, 0–380V AC |
| Output Frequency | 0–600Hz |
| Rated Power | 22kW |
| Rated Current | ~45A |
| MPPT Range | 486–650VDC |
| MPPT Efficiency | >99.7% |
| Cooling Method | Forced Air Cooling |
| Enclosure Protection | IP20 |
| Dimensions | 415×230×205 mm |
| Weight | ~12 kg |
| Mounting Type | Wall/Pole Mountable |
