Description

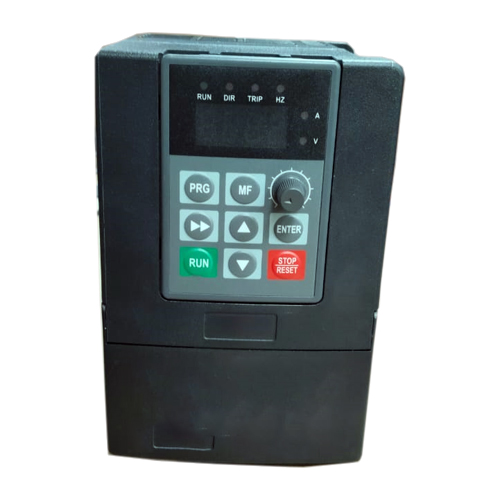

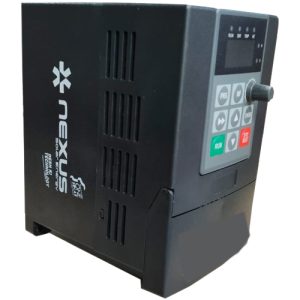

Nexus Solar Energy Pvt. Ltd. presents the MPPT Solar Pump Inverter 2.2kW, a high-performance solar inverter designed to efficiently run single-phase 380V AC water pumps using solar power. This inverter supports both DC input (350–800V) from solar panels and AC input (380V) from the grid, making it a true hybrid solution.
Equipped with a highly responsive MPPT algorithm, the inverter extracts maximum energy from solar panels even under low-light conditions. It offers complete pump protection features including dry-run detection, low-voltage protection, overload shutdown, and automatic recovery.
The inverter is ideal for small farms, borewells, and rural irrigation systems where stable and efficient water supply is essential. It also supports automatic start/stop based on sunlight availability, saving manual effort and enhancing system lifespan.
🔧 Technical Specifications:
| Specification | Value |
|---|---|
| Input Voltage (DC) | 350–800V |
| Input Voltage (AC) | 380–480V |
| Output Voltage | Single Phase, 0–380V AC |
| Output Frequency | 0–400Hz |
| Rated Power | 2.2kW |
| Rated Current | 5.1A |
| MPPT Range | 486–650VDC |
| Cooling | Forced Air Cooling |
| Enclosure | IP20 |
| Mounting | Wall Mount |
| Weight | ~2.5 kg |
