Description

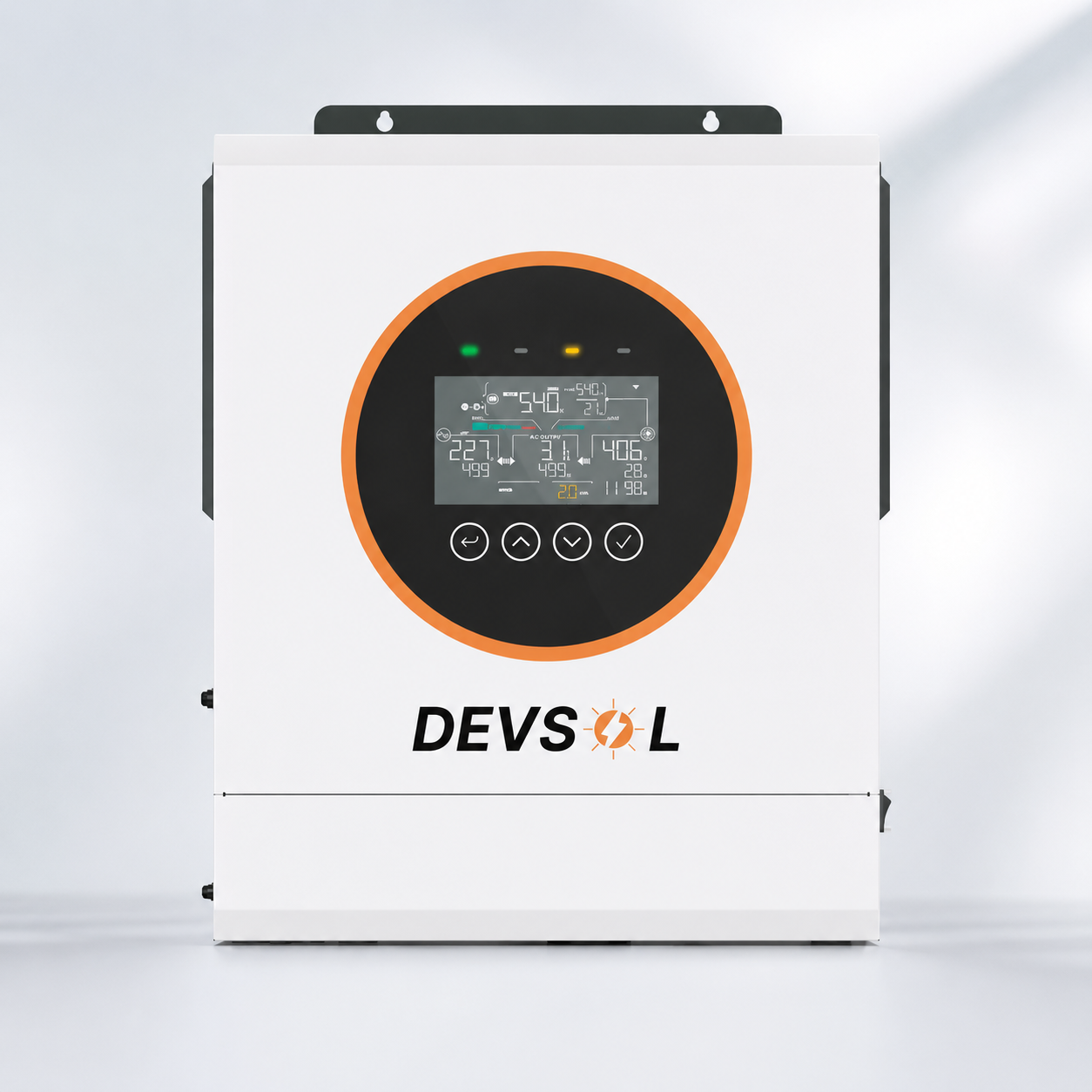

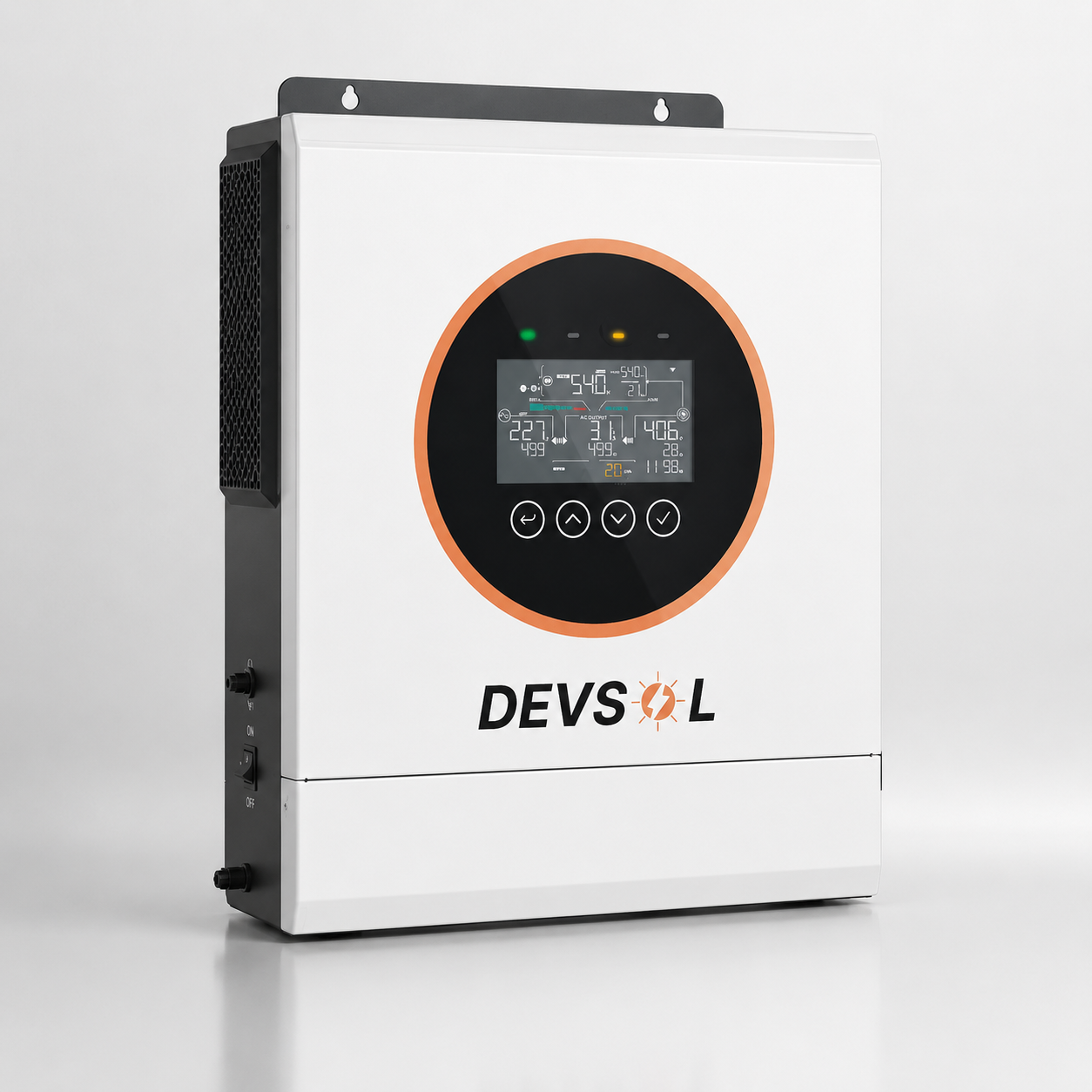

DEVSOL 6kW Hybrid Inverter 48V – IP54, MPPT and BIS Registered
The DEVSOL DEV HYD 6 KW is a 6kW 48V hybrid solar inverter manufactured by Nexus Solar Energy Pvt. Ltd. for buyers who need solar generation, battery backup and grid integration in one system. The IP54 model supports up to 9kW of PV input, a wide 60-450V MPPT range, 120A charging, battery-less operation, lithium or lead-acid batteries, dual AC outputs and BMS communication. Its BIS model designation is DEV HYD 6 KW under Nexus Solar Energy published inverter licence R-93035050.
A 6kW hybrid inverter combines the functions of a solar inverter, battery charger and UPS in a single unit. During the day, solar panels charge the batteries and power your loads. When solar energy is insufficient, the grid automatically supplements the supply. During a power cut, the inverter switches to battery backup in milliseconds to keep critical loads running. This makes the DEVSOL 6kW hybrid inverter suitable for homes, offices, shops, farmhouses and light commercial installations across India.
Why This 6kW Hybrid Inverter Is Different from Other Nexus 6kW Models
Nexus Solar Energy offers multiple 6kW hybrid inverter models. This new IP54 product is distinct from the existing variants:
| Feature | This IP54 Model | Existing IP21 Model | Existing IP65 Model |
|---|---|---|---|
| Protection | IP54 | IP21 | IP65 |
| MPPT | Single MPPT | Check live data | Dual MPPT |
| PV Input | Up to 9kW | Check live data | Check live data |
| MPPT Range | 60-450V | Check live data | Check live data |
| Charge Current | 120A | Check live data | Check live data |
| Dual AC Output | Yes | Check live data | Check live data |
| Warranty | 4 years* | Check live data | Check live data |
Each model serves a different use case. The IP21 model is suitable for protected indoor environments. The IP65 model provides higher ingress protection with Dual MPPT for larger arrays. This IP54 model offers a middle ground with solid protection, 9kW PV input, dual AC output and a 4-year warranty.
Up to 9kW Solar PV Input on a 6kW Inverter
The DEVSOL DEV HYD 6 KW accepts up to 9000W of solar PV input while its rated AC output remains 6kW. This means you can connect a larger solar array than the inverter rated output, which can improve solar availability across changing irradiance conditions throughout the day.
However, this does NOT mean 9kW of AC output. The inverter output is governed by the rated 6kW capacity and operating mode. PV oversizing is a common practice in hybrid inverter design, but string design must remain within:
- MPPT operating range: 60-450V DC
- Maximum PV open-circuit voltage: 500V DC
- Maximum PV input current: 27A
Always calculate string voltage from actual panel Voc/Vmp and temperature coefficients for your site. Do not assume universal panel counts without proper engineering.
Wide 60-450V MPPT Range
The MPPT operating range of 60V to 450V DC gives flexibility in string configuration. The PV start-up voltage of just 80V DC means the inverter can begin tracking maximum power point early in the morning or during low-light conditions.
A wider MPPT range is particularly useful in India where:
- Summer temperatures raise panel voltage
- Winter mornings may have lower irradiance
- Different panel configurations produce different string voltages
The maximum PV open-circuit voltage of 500V DC must not be exceeded under any condition. This limit must be verified against the cold-temperature Voc of your chosen panels.
120A Solar and AC Charging
The DEVSOL 6kW hybrid inverter supports high-current charging:
| Parameter | Value |
|---|---|
| Maximum PV Charge Current | 120A |
| Maximum AC Charge Current | 120A |
| Maximum Combined Charge (PV + AC) | 120A |
Important: The maximum combined charge current is 120A, not 240A. The PV and AC charging share the same 120A maximum limit. Battery charge settings must always stay within the battery/BMS recommended limits.
Battery-Less Hybrid Inverter – Solar Today, Battery Later
The technical source explicitly lists ability to work without a battery. This is a high-value feature for buyers who want to start with solar generation immediately and add battery storage later.
In battery-less operation:
- Solar energy can power loads directly during daytime
- Grid supplements when solar is insufficient
- No battery backup during power cuts in battery-less mode
- Battery can be added later for backup functionality
Battery backup during an outage requires a battery unless the specific operating mode supports live PV at that moment according to the installation design.
48V Lithium and Lead-Acid Battery Support
The DEVSOL 6kW hybrid inverter operates with a 48V nominal battery system and supports both:
- Lithium batteries – higher energy density, longer cycle life, lighter weight
- Lead-acid batteries – lower upfront cost, proven technology, widely available
BMS Communication: CAN / RS485 protocols are supported for lithium battery communication. However, exact lithium battery BMS protocol compatibility must be confirmed for the specific battery model being used. Not all lithium batteries are plug-and-play with every inverter.
Pure Sine Wave Output and 12kVA Surge Capability
The DEVSOL 6kW hybrid inverter produces a pure sine wave AC output with a power factor of 1.0. This makes it compatible with sensitive electronics, motors, compressors and all household appliances.
| Parameter | Value |
|---|---|
| Rated Output | 6kW |
| Surge Power | 12kVA |
| Power Factor | 1.0 |
| Waveform | Pure Sine Wave |
| Output Voltage | 208/220/230/240 VAC |
| Output Frequency | 50/60 Hz +/-0.1% |
| Transfer Time (APP/UPS) | 10ms |
| Transfer Time (GEN) | 20ms |
| Overload (Battery Mode) | 1 min at 102-120%; 10s at 120-200% |
| Max Efficiency (Battery Mode) | 94% @ 48V |
The 12kVA surge capability handles short-duration high-power loads such as motor starting. However, 12kVA is not continuous rated power. The inverter rated output remains 6kW for sustained operation.
Dual AC Output for Load Management
The source product overview shows AC Output 1 and AC Output 2. Dual AC output can help separate or prioritize different load groups according to the approved installation configuration.
For example, critical loads like lights, fans and refrigerators can be connected to one output, while non-critical loads can be connected to the other. This provides flexibility in load management during grid outages or battery-limited situations.
The exact priority logic and load-shedding behavior depends on the inverter firmware configuration and should be set by a qualified installer.
Feed-In to Grid and Hybrid Energy Management
The source feature page states the platform supports:
- Feed-in to grid function
- Solar and grid can power loads at the same time
The inverter platform supports grid-interactive functionality and simultaneous solar/grid energy management. Final export settings, net-meter approval and DISCOM compliance depend on the installation, firmware configuration and local utility rules.
Note: Net metering availability, zero-export certification and subsidy eligibility vary by state and DISCOM. Consult your local solar installer and utility for current applicable policies.
IP54 Hybrid Inverter – What IP54 Actually Means
IP54 is an ingress protection rating that indicates:
- 5 – Protected against dust ingress (limited, not fully dust-tight)
- 4 – Protected against water splashing from any direction
This makes the IP54 model suitable for semi-protected installations such as covered terraces, utility rooms, garages and sheltered outdoor locations. It is:
- NOT equivalent to IP65 or IP66 (higher protection)
- NOT submersible or waterproof for high-pressure water jets
- NOT floodproof
Mounting and ventilation rules must follow the approved Nexus product manual. Adequate airflow and protection from direct rain are still required.
AC Input Specifications
| Parameter | Value |
|---|---|
| Rated Input Voltage | 208/220/230/240 VAC; L+N+PE |
| APP/GEN Input Range | 90-280 VAC |
| UPS Input Range | 170-264 VAC |
| Frequency | 50/60 Hz, auto-adaptive |
General Data and Environmental Specifications
| Parameter | Value |
|---|---|
| Protection | IP54 |
| Display | 5-inch LCD |
| Communication | RS232 / RS485 / CAN |
| Wi-Fi | Optional |
| CT | Optional |
| Meter | Optional |
| Operating Temperature | -10 C to +60 C |
| Storage Temperature | -15 C to +60 C |
| Relative Humidity | 5-95%, non-condensing |
| Maximum Operating Altitude | 4000m; derating above 1000m |
5-Inch LCD and Optional Wi-Fi Monitoring
The inverter features a 5-inch LCD display for real-time monitoring of system status, power flow and configuration settings. Communication interfaces include RS232, RS485 and CAN for BMS and monitoring connections.
Optional Wi-Fi monitoring enables remote monitoring of the inverter system. However, remote monitoring requires compatible hardware, internet connectivity and proper configuration. Do not assume guaranteed remote access without verifying the complete monitoring setup.
BIS Registered DEV HYD 6 KW – What Buyers Should Verify
A genuine BIS claim should include the standard number, licence number, exact model designation and current validity. The DEVSOL DEV HYD 6 KW publishes the following BIS information:
BIS Registered 6kW Hybrid Inverter
- Brand: DEVSOL
- Manufacturer: Nexus Solar Energy Pvt. Ltd.
- BIS Model Designation: DEV HYD 6 KW
- BIS Licence No.: R-93035050
- Standards: IS 16221 (Part 2):2015 & IS 16169:2014
- Product Category: Utility-Interconnected Photovoltaic Inverter
A BIS licence is meaningful only when the specific model is covered by the licence model list. Verify current certificate validity and exact model coverage before final labelling.
Is the DEVSOL 6kW One of the Best Hybrid Inverter Options in India?
For a buyer comparing the best hybrid inverter options in India, the right comparison is not a brand slogan but a measurable checklist: rated power, PV input, MPPT window, battery voltage, charging current, backup waveform, battery-less capability, IP rating, BIS model coverage, warranty and service support.
| Buyer Check | DEVSOL DEV HYD 6 KW |
|---|---|
| Rated output | 6kW |
| Battery | 48V |
| PV input | Up to 9kW |
| MPPT | 60-450V |
| Max PV Voc | 500V |
| Charge current | Up to 120A |
| Battery-less | Supported |
| Battery types | Lithium / Lead-acid |
| Output waveform | Pure sine wave |
| Surge | 12kVA |
| Protection | IP54 |
| BIS model | DEV HYD 6 KW |
| Warranty | 4 years* |
This makes it a strong candidate for buyers whose load, solar-array voltage and 48V battery design match these specifications. System sizing should still be done for the actual site rather than choosing only by kW rating.
5kW vs 6kW Hybrid Inverter – Which One Should You Choose?
A 5kW and a 6kW inverter are not the same product. A 5kW hybrid inverter is usually the better fit when the calculated simultaneous load remains comfortably below 5kW. A 6kW model provides more headroom when:
- The load calculation is closer to 5kW
- Future load growth is expected
- The 48V battery architecture and higher PV input of this model are required
- Surge loads like air conditioners and pumps need more headroom
| Feature | 5kW Hybrid Inverter | DEVSOL 6kW IP54 |
|---|---|---|
| Rated output | 5kW | 6kW |
| Headroom for load growth | Limited | More capacity |
| PV input | Check 5kW model specs | Up to 9kW |
| Best for | Loads under 5kW | Larger loads, future growth |
Choose based on simultaneous load, surge requirements, PV size, battery architecture and future expansion. A 6kW model provides more rated capacity but may be unnecessary for smaller loads.
Quick Answer: What is the DEVSOL DEV HYD 6 KW?
DEVSOL DEV HYD 6 KW is a 6kW, single-phase, 48V hybrid solar inverter manufactured by Nexus Solar Energy Pvt. Ltd. The IP54 model accepts up to 9000W of solar PV, uses an MPPT operating range of 60-450V DC with 500V maximum PV open-circuit voltage, supports up to 120A charging, works with lithium and lead-acid batteries, supports battery-less operation, provides pure sine-wave AC output and dual AC outputs, and uses CAN/RS485 for BMS communication. The published BIS model designation is DEV HYD 6 KW under Nexus Solar Energy inverter licence R-93035050.
DEVSOL DEV HYD 6 KW – Technical Fact Summary
| Entity Fact | Value |
|---|---|
| Product | DEVSOL DEV HYD 6 KW |
| Product type | Hybrid Solar Inverter |
| Rated power | 6kW |
| Phase | Single Phase |
| Battery system | 48V |
| Maximum PV input | 9000W |
| MPPT range | 60-450V |
| Max PV Voc | 500V |
| Max PV current | 27A |
| Max charging | 120A |
| Battery support | Lithium / Lead-acid |
| Battery-less operation | Supported |
| Output waveform | Pure sine wave |
| Dual AC output | Yes |
| BMS communication | CAN / RS485 |
| Wi-Fi | Optional |
| Display | 5-inch LCD |
| Protection | IP54 |
| BIS model | DEV HYD 6 KW |
| BIS licence | R-93035050 |
| Manufacturer | Nexus Solar Energy Pvt. Ltd. |
| Brand | DEVSOL |
| Warranty | 4 years* |
Manufactured by Nexus Solar Energy Pvt. Ltd. – Hybrid Inverter Manufacturer in India
The DEVSOL DEV HYD 6 KW is manufactured by Nexus Solar Energy Pvt. Ltd., Bulandshahr, Uttar Pradesh. Nexus publishes hybrid-inverter specifications, MRP, warranty class and BIS licence information across its product range and supports the category through its Indian dealer and service network.
Explore the full range of hybrid inverters from Nexus Solar Energy, or read our complete hybrid solar inverter guide to understand how to choose the right model for your needs.
Warranty
The DEVSOL DEV HYD 6 KW IP54 model comes with a 4-year warranty* under the current Nexus IP54 warranty class. Warranty terms and conditions apply.
Nexus Solar Energy publishes warranty by IP build class:
- IP21 = 2 years*
- IP54 = 4 years*
- IP65/IP66 = 5 years*
For full warranty terms, refer to the applicable Nexus Solar Energy warranty documentation.
FAQs – DEVSOL 6kW Hybrid Solar Inverter
Q: What is the DEVSOL DEV HYD 6 KW?
A: A 6kW, 48V, single-phase hybrid solar inverter manufactured by Nexus Solar Energy Pvt. Ltd.
Q: What is the PV capacity of this 6kW hybrid inverter?
A: Up to 9000W PV input, subject to the 60-450V MPPT range, 500V maximum PV open-circuit voltage and 27A PV input-current limit.
Q: What is the battery voltage?
A: 48V nominal.
Q: Does it support lithium batteries?
A: Yes, the technical source supports lithium and lead-acid batteries. CAN / RS485 BMS communication is available, but protocol compatibility must be confirmed for the exact battery.
Q: Can the inverter work without a battery?
A: Yes. The source platform lists ability to work without a battery. Final operating behavior depends on system settings, grid and PV conditions.
Q: What is the maximum charging current?
A: 120A. The technical source lists 120A maximum PV charge, 120A maximum AC charge and 120A maximum combined charge current.
Q: What is the MPPT range?
A: 60V to 450V DC.
Q: What is the maximum PV Voc?
A: 500V DC.
Q: What is the PV start-up voltage?
A: 80V DC.
Q: Does it have Dual MPPT?
A: No. The supplied source specifies MPPT charging but does not document two independent MPPT trackers.
Q: Does it have dual AC output?
A: Yes. AC Output 1 and AC Output 2 are shown in the product overview.
Q: What is the surge power?
A: 12kVA according to the supplied technical source.
Q: What waveform does it produce?
A: Pure sine wave.
Q: What is the transfer time?
A: 10ms in APP/UPS mode and 20ms in GEN mode.
Q: What is the efficiency?
A: The source states maximum battery-mode efficiency of 94% at 48V.
Q: What IP rating is this model?
A: IP54 for the owner-approved production variant.
Q: What warranty applies?
A: 4-year warranty* under the current Nexus IP54 warranty class. Terms apply.
Q: Is the DEVSOL 6kW inverter BIS registered?
A: The Nexus website publishes model designation DEV HYD 6 KW under inverter BIS Licence R-93035050, IS 16221 (Part 2):2015 and IS 16169:2014. Verify current certificate/model-list validity.
Q: Who manufactures it?
A: Nexus Solar Energy Pvt. Ltd., Bulandshahr, Uttar Pradesh.
Q: Is a 6kW inverter better than a 5kW inverter?
A: Not automatically. Choose based on simultaneous load, surge requirements, PV size, battery architecture and future expansion. A 6kW model provides more rated capacity but may be unnecessary for smaller loads.
Q: What is the difference between this IP54 6kW and the Nexus 6kW IP65 inverter?
A: This model is the IP54 9kW-PV single-MPPT variant; the separate IP65 product has its own Dual-MPPT and higher-protection specification.
Technical Data and Verification
This page publishes model-specific electrical and technical values for the DEVSOL DEV HYD 6 KW hybrid inverter so buyers, EPC companies and installers can check battery compatibility, PV string design, load matching and BIS certification information before purchase. Final system sizing must be completed according to the actual load, site conditions and applicable electrical standards.
