Description

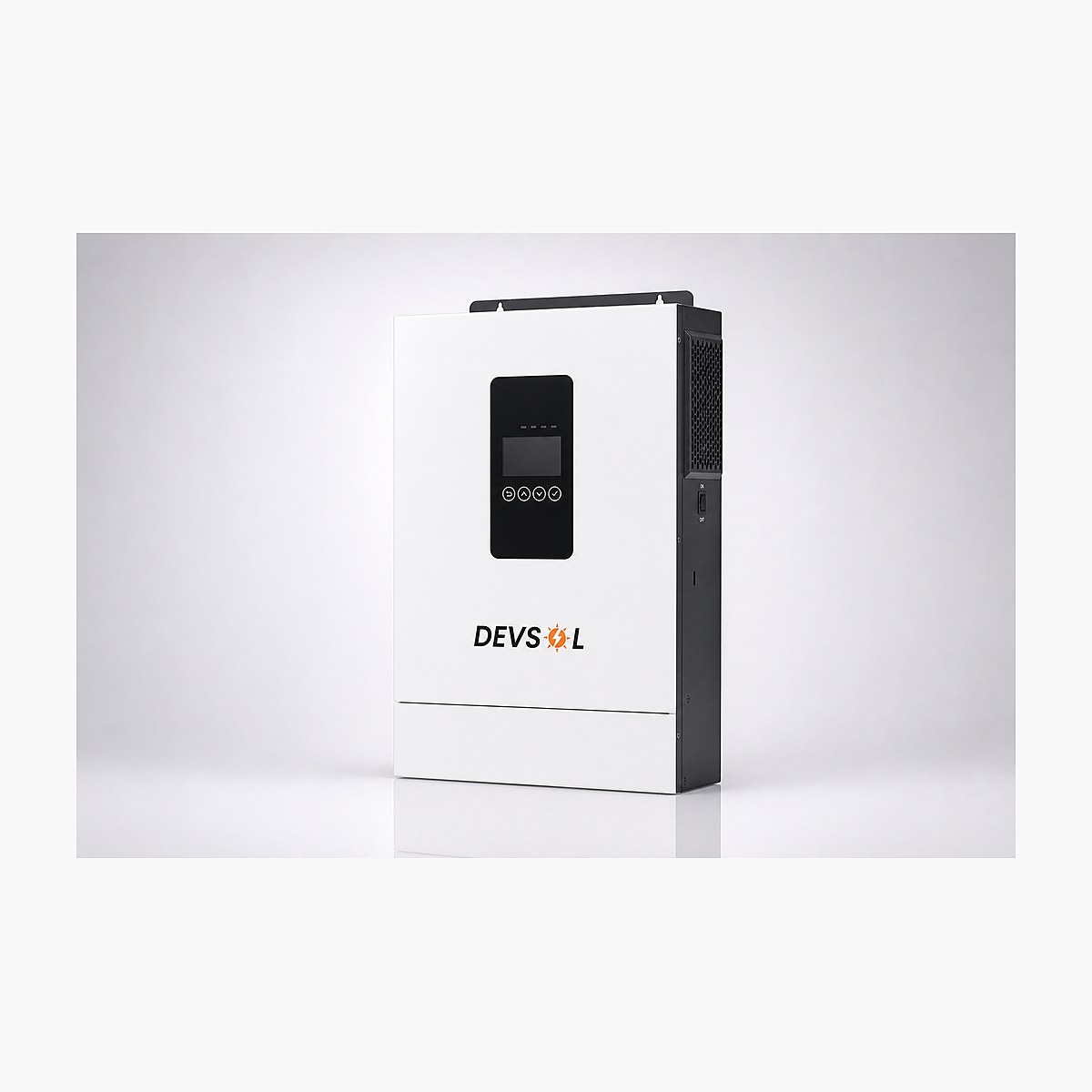

DEV HYD 3KW 24V IP54 Hybrid Inverter
DEV HYD 3KW 24V IP54 Hybrid Inverter from Nexus Solar Energy is built for reliable solar backup, smart energy management and efficient MPPT charging for homes, shops and small business applications.
Key Features
- 3kW 24V hybrid inverter for solar backup and daily power support
- IP54 protection for better dust and water resistance
- Pure sine wave output for stable appliance protection
- Built-in MPPT solar charger
- MPPT range: 40V-450V
- Max PV input: 5000W
- 24V battery system
- Works without battery where supported by installation configuration
- Lithium and lead-acid compatible
- WiFi monitoring optional
- BMS communication: CAN / RS485 / RS232
- Max efficiency: 92%
Specifications
| Product Type | Hybrid Solar Inverter / Hybrid PCU |
|---|---|
| Brand | Nexus Solar Energy |
| Model | DEV HYD 3KW 24V IP54 |
| Rated Capacity | 3kW |
| Battery System | 24V |
| Solar Charger | Built-in MPPT |
| MPPT Range | 40V-450V |
| Max PV Input | 5000W |
| Output Waveform | Pure sine wave |
| Battery Compatibility | Lithium and lead-acid compatible |
| Communication | CAN / RS485 / RS232 for BMS communication |
| Monitoring | WiFi monitoring optional |
| Protection | IP54 |
| Max Efficiency | 92% |
| Applications | Homes, shops, offices and small solar backup systems |
