Description

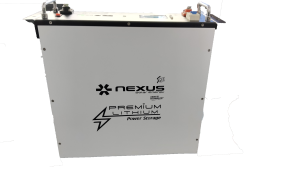

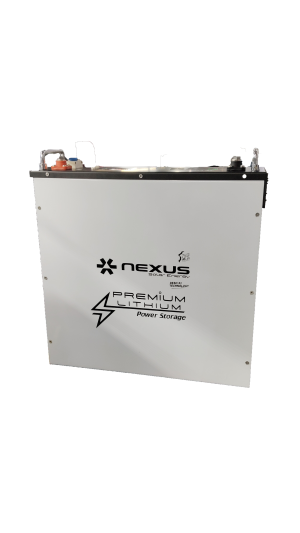

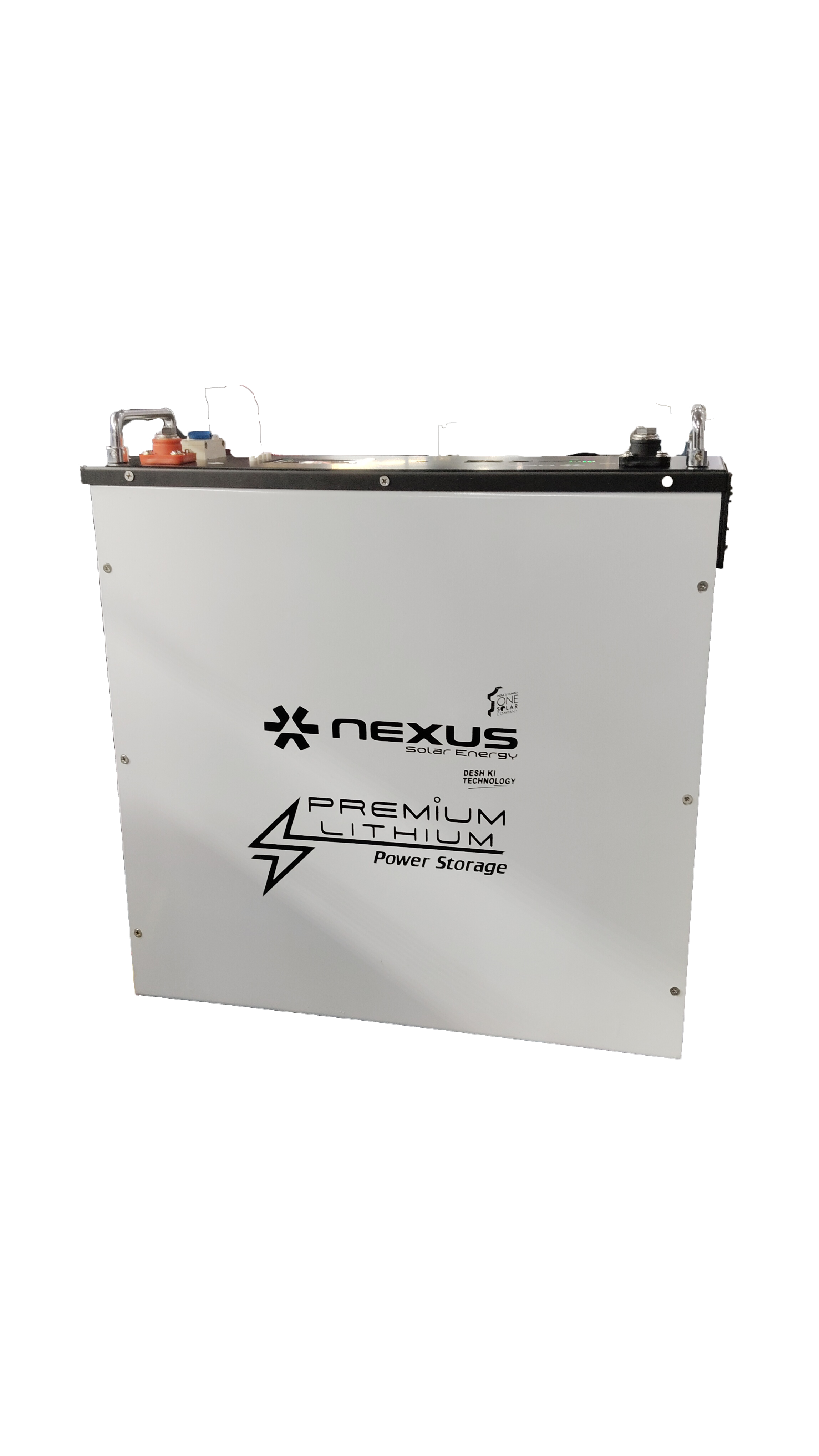

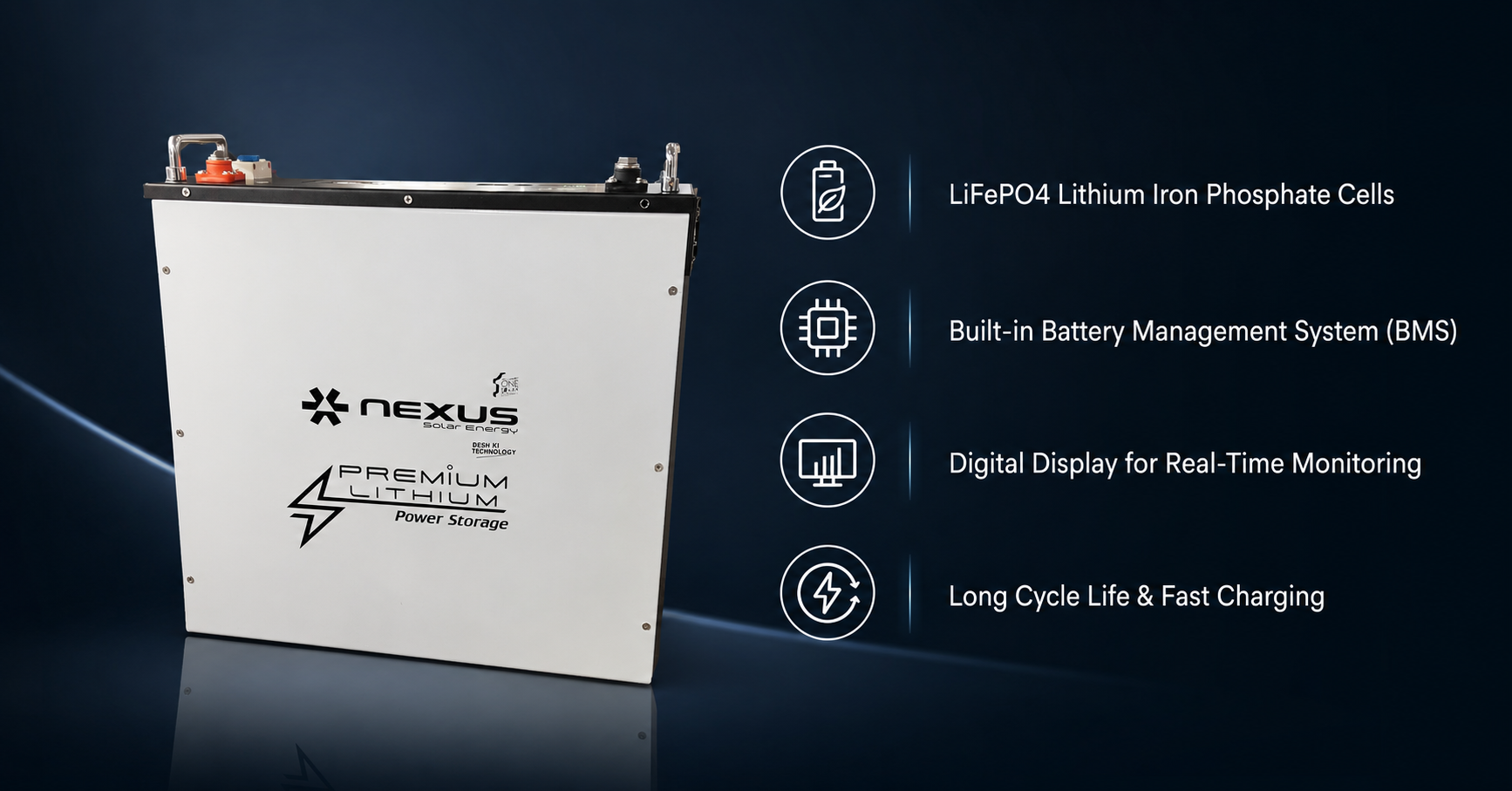

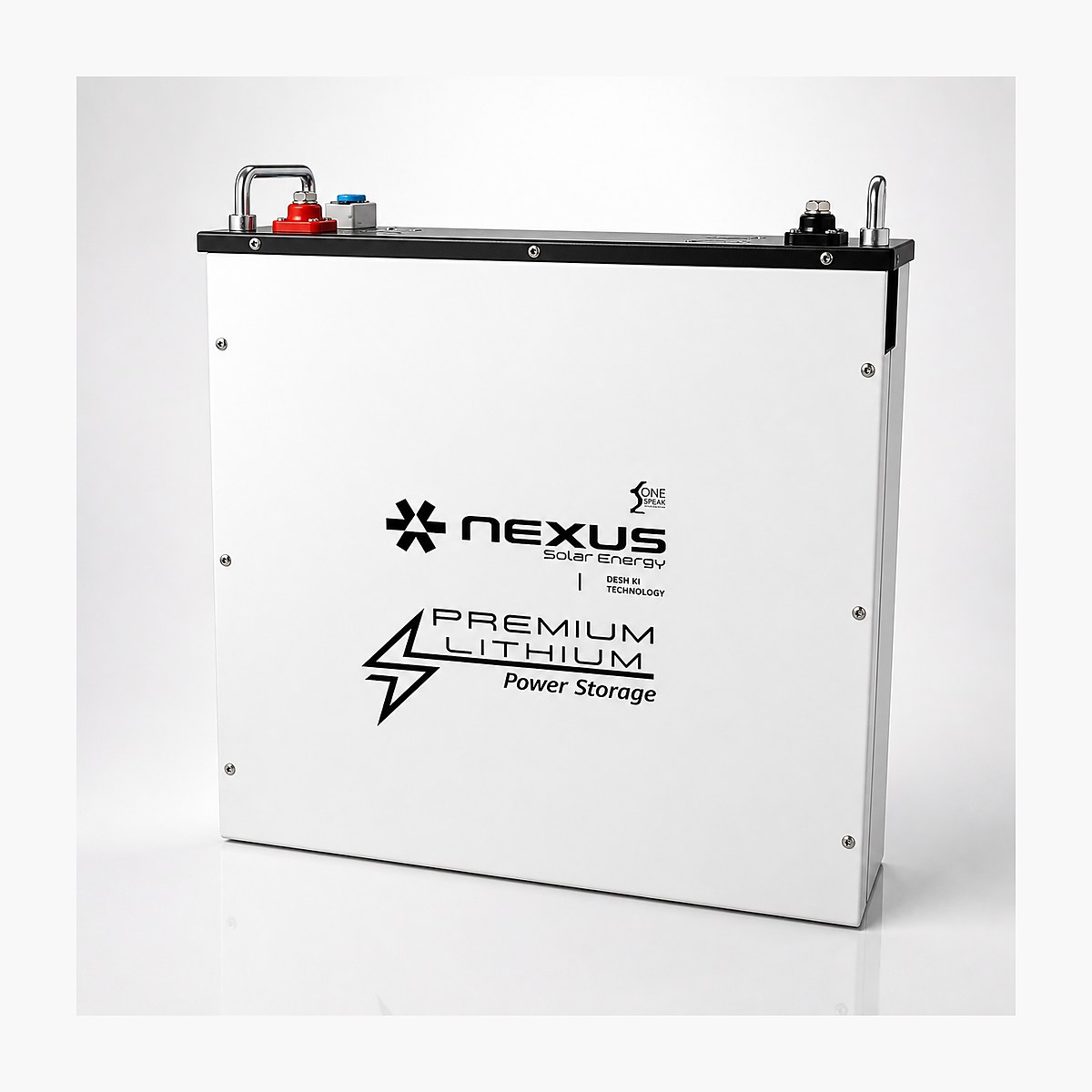

100Ah 51.2V Lithium Battery with Display
100Ah 51.2V Lithium Battery with Display from Nexus Solar Energy is designed for solar inverter backup, home energy storage and commercial backup systems. It combines LiFePO4 battery technology, practical backup performance and product support for customers, installers and dealers.
Key Benefits
- smart display and BMS monitoring
- Reliable lithium battery solution for solar inverter and backup applications
- BMS protection for safer charging and discharging
- Compact, efficient and lower-maintenance than traditional battery systems
- Designed for solar inverter and stationary backup applications; match the exact inverter voltage and charging settings
- Backed by Nexus Solar Energy product guidance and dealer support
Specifications
| Specification | Value |
|---|---|
| Product Type | Lithium Battery / Energy Storage Battery |
| Brand | Nexus Solar Energy |
| Model | 100Ah 51.2V Lithium Battery with Display |
| Capacity | 100Ah |
| Nominal Voltage | 51.2V |
| Battery Chemistry | LiFePO4 |
| Applications | Solar inverter backup, home energy storage and commercial backup systems |
| Chemistry | LiFePO4 (lithium iron phosphate) |
| Cycle life | 4,500+ cycles |
| Warranty | 5 years* |
| BMS | Smart BMS with cell balancing (active or passive according to installed variant) and built-in temperature sensors |
| Parallel expansion | Approved same-model parallel expansion; confirm the supported pack count and inverter communication before installation |
Buying Guidance
Battery backup time depends on connected load, inverter voltage, charge/discharge current and system design. Contact Nexus Solar Energy before purchase to confirm compatibility with your solar or hybrid inverter.
*Warranty terms and conditions apply.
Manufacturer-confirmed model specification
Nexus Solar Energy Premium LCD 51.2V 100Ah LiFePO4 battery, 5.12kWh nominal energy. Manufacturer-declared 4,500+ cycle-life rating. Smart BMS with 100A continuous discharge limit; recommended discharge 50A (0.5C). Temperature monitoring and cell balancing; balancing type depends on installed variant. LCD provides cycle count, individual cell voltage and temperature readings. Approved same-model parallel expansion supported. Match exact inverter voltage range, charging settings, current limits and communication protocol. Battery-only offer; inverter, installation and protection equipment are separate.
Choose the battery and solar or hybrid inverter together using the supported battery voltage, continuous discharge limit, recommended charge settings and written warranty. The series cycle-life rating shown above is manufacturer-declared.
Compare the solar and hybrid inverter lithium battery guide and current battery prices. Warranty conditions apply to the selected model.
Smart ESS BMS: protection, monitoring and inverter communication
This 51.2V 100Ah LCD battery combines a 100A continuous-discharge Smart ESS BMS with cell-voltage monitoring, temperature sensing and cell balancing. The recommended routine discharge is 50A (0.5C); the BMS current limit is not a guarantee of equivalent AC inverter output.
| Battery-management feature | What this model provides |
|---|---|
| Electrical protection | Overcharge, over-discharge, overcurrent and short-circuit protection. |
| Temperature protection | Temperature sensing and protective control during battery operation. |

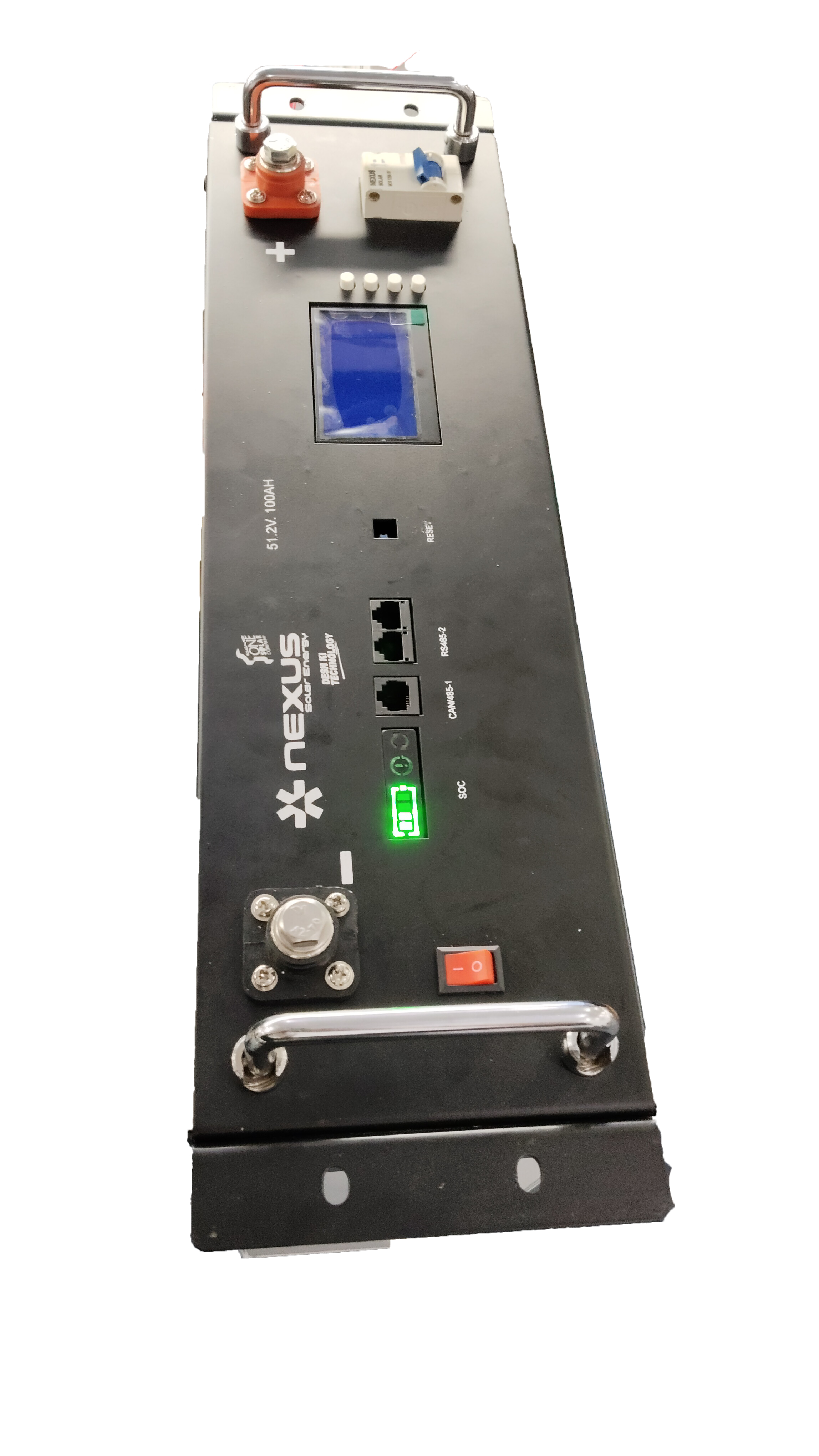

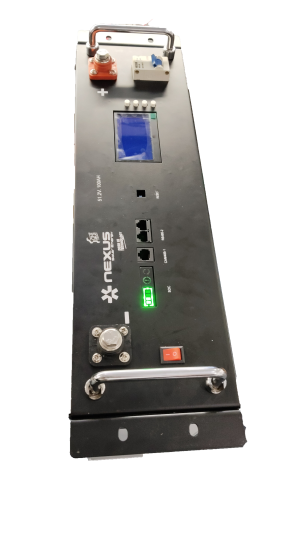

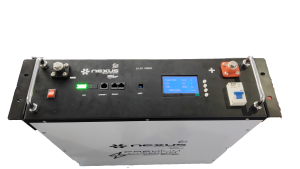

| LCD monitoring | Individual cell voltage, battery temperature and life-cycle count. |
| Cell balancing | Smart balancing; active or passive balancing follows the supplied battery variant. |
| ESS communication | CAN/RS485 communication support for a matching inverter protocol. Match the battery revision, inverter firmware, selected profile and cable pinout during commissioning. |
| Parallel expansion | Approved same-model packs can expand the bank. Use the supported pack count, matched state of charge and the specified parallel wiring and protection. |
Which solar or hybrid inverter should I use?
Choose a 48V-class inverter whose actual battery-voltage window and charge/discharge settings match this 51.2V LiFePO4 pack. For Nexus Solar Energy, Devsol or another inverter, select the exact model and communication profile before connecting CAN or RS485; the port name alone does not establish compatibility.
Use the inverter technical library and retain the inverter–battery commissioning record with the installation. Ask Nexus Solar Energy for the matching model, bank size and current settings.

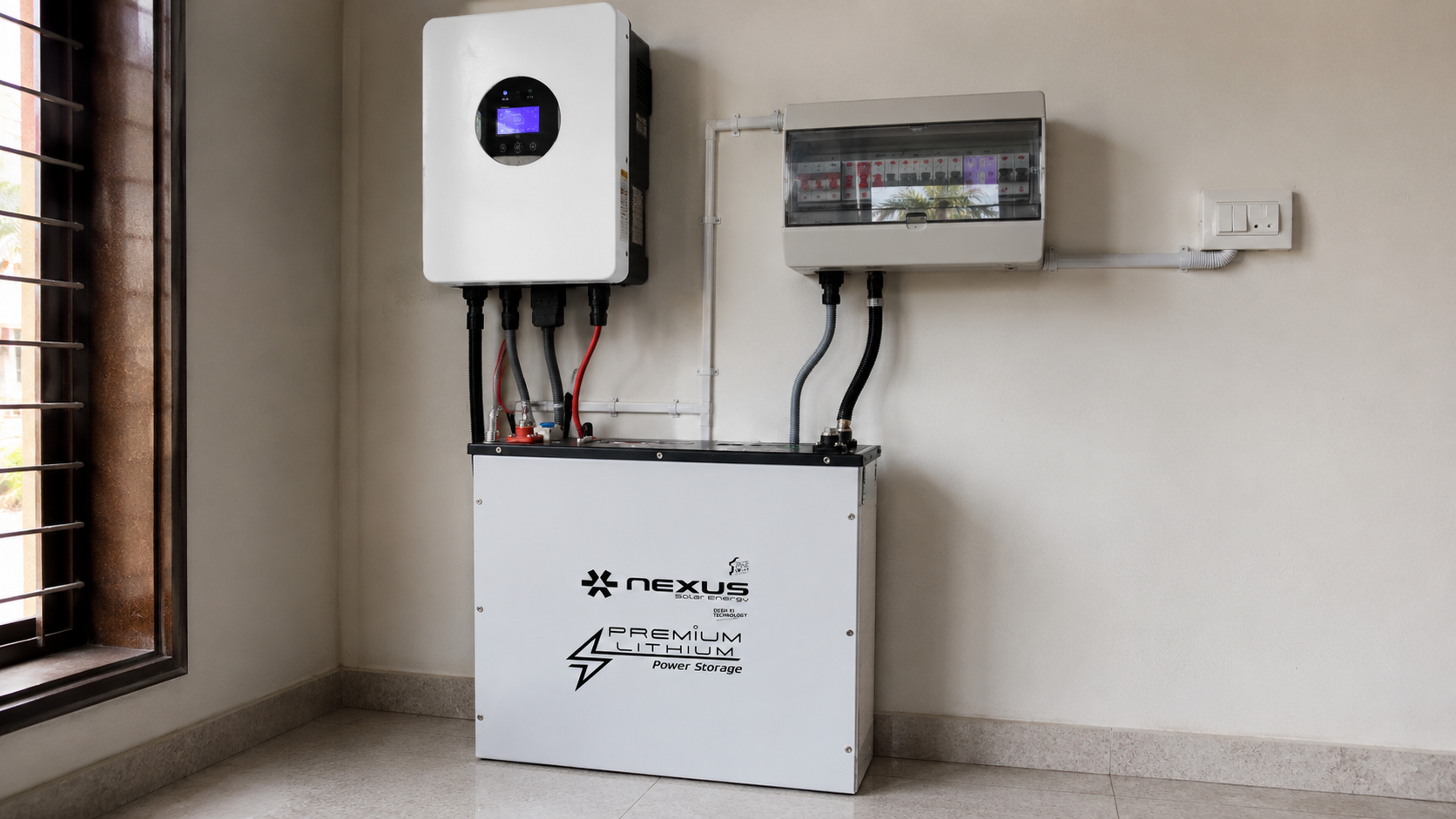

Choose the Premium LCD battery as part of a matched backup system
This 51.2V 100Ah Nexus Solar Energy Premium LCD pack provides 5.12kWh nominal energy, a 100A continuous-discharge BMS limit and a recommended routine discharge of 50A. Choose the supported inverter and bank configuration for the intended load; nominal battery energy is not an AC backup-power rating.
Before ordering, put the exact supplied battery variant, inverter model, approved communication/settings, battery-bank size and included installation items on the quotation. Retain the commissioning record and model warranty terms with your invoice. The dealer locator and Nexus Solar Energy support contact provide the route for a matched quotation and service enquiry.
Watch Deepak Chaudhary’s home lithium-battery guide for battery display, BMS and load-protection buying context. Use the specifications and commissioning settings of the exact supplied pack for your installation.
